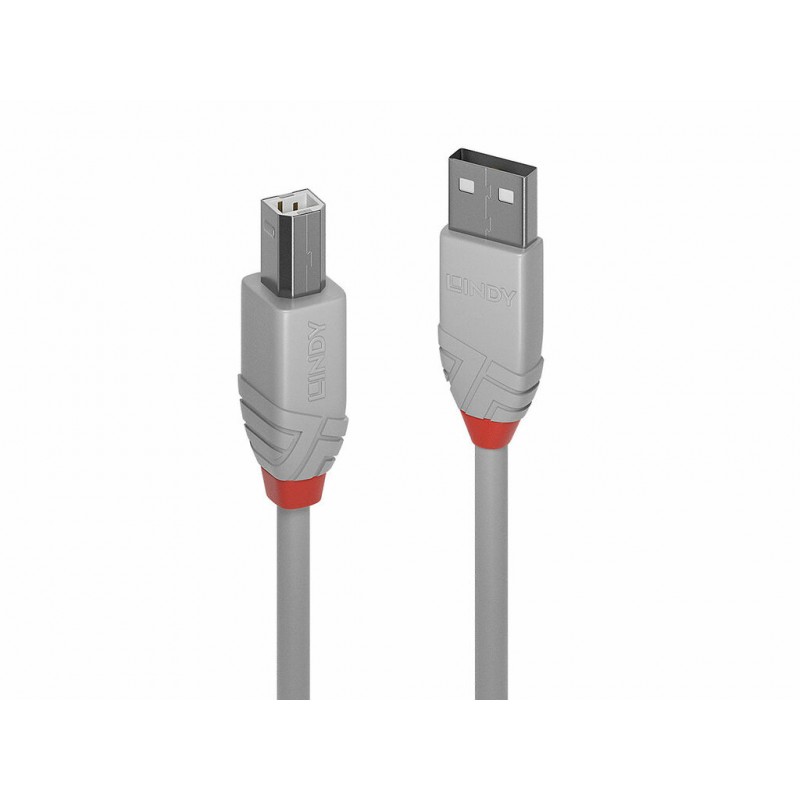

Connectors Connector A: USB 2.0 Type A Male Connector B: USB 2.0 Type B Male Housing Material: PVC Connector Plating: Nickel Pin Construction: Copper Pin Plating: Gold Dimensions (approx.) WxDxH: A: 15.5x35x7.8mm (0.61x1.38x0.31in) B: 11.8x35x10.2mm (0.47x1.38x0.40in) Cable Construction Length: 3m (9.84ft) Standard: USB 2.0 Colour: Grey Type: Round Jacket Diameter: 4.4mm (0.17in) Jacket Material: PVC Conductor Material: Tinned Copper Conductor Gauge: 26/28AWG Shielding: Aluminium Magnesium Braid Specifications Supported Bandwidth: 480Mbps Maximum Resolution: - Nominal Attenuation: 5.8db/km Minimum Band Radius: 16mm (0.63in) Operating Temperature: 0°C - 80°C (32°F - 176°F) Storage Temperature: 0°C - 60°C (32°F - 140°F) ATC Approved: - Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH & UL Purchasing Information No.: 36684 EAN: 4002888366847 This product is also available in other lengths 36680 - 0.2m (0.66ft) 36681 - 0.5m (1.64ft) 36682 - 1m (3.28ft) 36683 - 2m (6.56ft) 36684 - 3m (9.84ft) 36685 - 5m (16.44ft)
- Tipo de producto
- USB 2.0 Tipo A a B
- Garantía
- 2 años, excepto cableado AV 10 a 25 años.
- Longitud
- 3m
- Promoción
- Top Ventas
