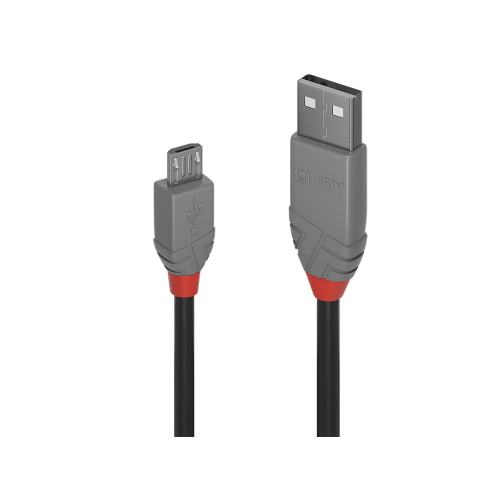

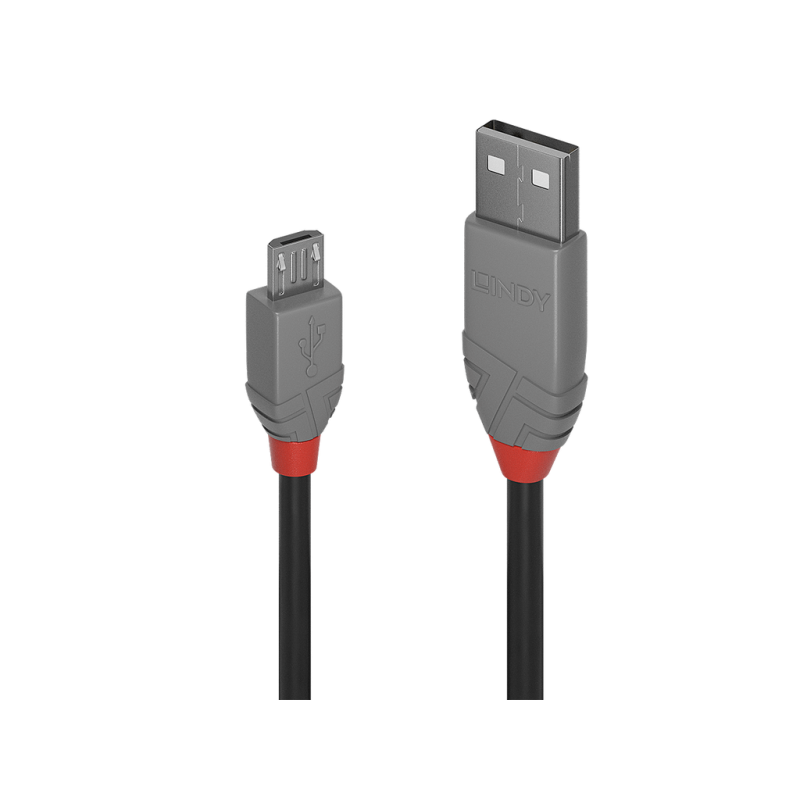

Connectors Connector A: USB 2.0 Type A Male Connector B: USB 2.0 Type Micro-B Male Housing Material: PVC Connector Plating: Nickel Pin Construction: Copper Pin Plating: Gold Dimensions (approx.) WxDxH: A: 15.5x35x7.8mm (0.61x1.38x0.31in) Micro-B:10x24x7.6mm (0.29x0.95x0.30in) Cable Construction Length: 1m (3.28ft) Standard: USB 2.0 Colour: Black Type: Round Jacket Diameter: 3.5mm (0.14in) Jacket Material: PVC Conductor Material: Tinned Copper Conductor Gauge: 28/28AWG Shielding: Aluminium Magnesium Braid Specifications Supported Bandwidth: 480Mbps Maximum Resolution: - Nominal Attenuation: 5.8db/km Minumum Band Radius: 16mm (0.63in) Operating Temperature: 0°C - 60°C (32°F - 140°F) Storage Temperature: 0°C - 60°C (32°F - 140°F) ATC Approved: - Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH & UL Purchasing Information No.: 36732 EAN: 4002888367325 This product is also available in other lengths 36730 - 0.2m (0.66ft) 36731 - 0.5m (1.64ft) 36732 - 1m (3.28ft) 36733 - 2m (6.56ft) 36734 - 3m (9.84ft) 36735 - 5m (16.44ft)
- Tipo de producto
- USB 2.0 Tipo A a Micro-B
- Garantía
- 2 años, excepto cableado AV 10 a 25 años.
- Longitud
- 1m
