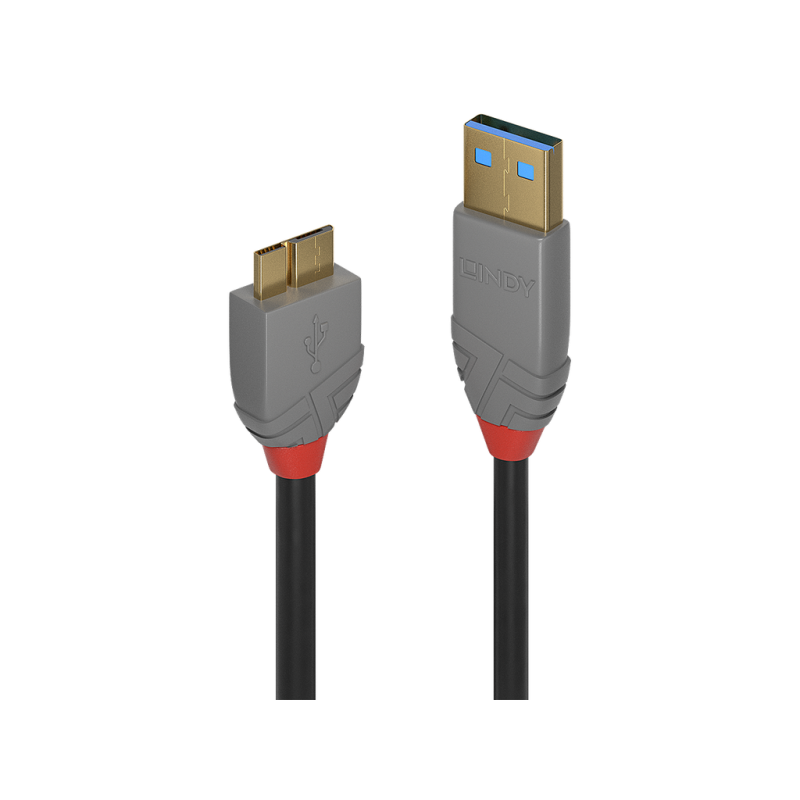

Connectors Connector A: USB 3.2 Type A Male Connector B: USB 3.2 Micro-B Male Housing Material: PVC Connector Plating: Gold Plated Pin Construction: Copper Pin Plating: Gold Plated Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in) Dimensions, USB Micro-B (approx.) WxDxH: 15.8x26.0x7.8mm (0.62x1.02x0.31in) Cable Construction Length: 0.5m (1.64ft) Standard: USB 3.2 Gen 1 Colour: Black Type: Round Jacket Diameter: 5.5mm (0.22in) Jacket Material: PVC Conductor Material: Tinned Copper Conductor Gauge Power: 24AWG Conductor Gauge Data: 28AWG Shielding: Aluminium Braid 85% Specifications Supported Bandwidth: 5Gbps Maximum Resolution: - Nominal Attenuation: 0.5-5m: 0.5MHz-7.5GHz Minimum Bend Radius: 48mm (1.89in) Operating Temperature: 0°C - 60°C (32°F - 140°F) Storage Temperature: 0°C - 60°C (32°F - 140°F) Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: CE, UKCA, RoHS, REACH, UL Purchasing Information No. 36765 EAN: 4002888367653 This product is also available in other lengths 36765 - 0.5m (1.64ft) 36766 - 1m (3.28ft) 36767 - 2m (6.56ft) 36768 - 3m (9.84ft)
- Tipo de producto
- USB 3.2 Tipo A a Micro-B
- Garantía
- 2 años, excepto cableado AV 10 a 25 años.
- Longitud
- 0,5m
