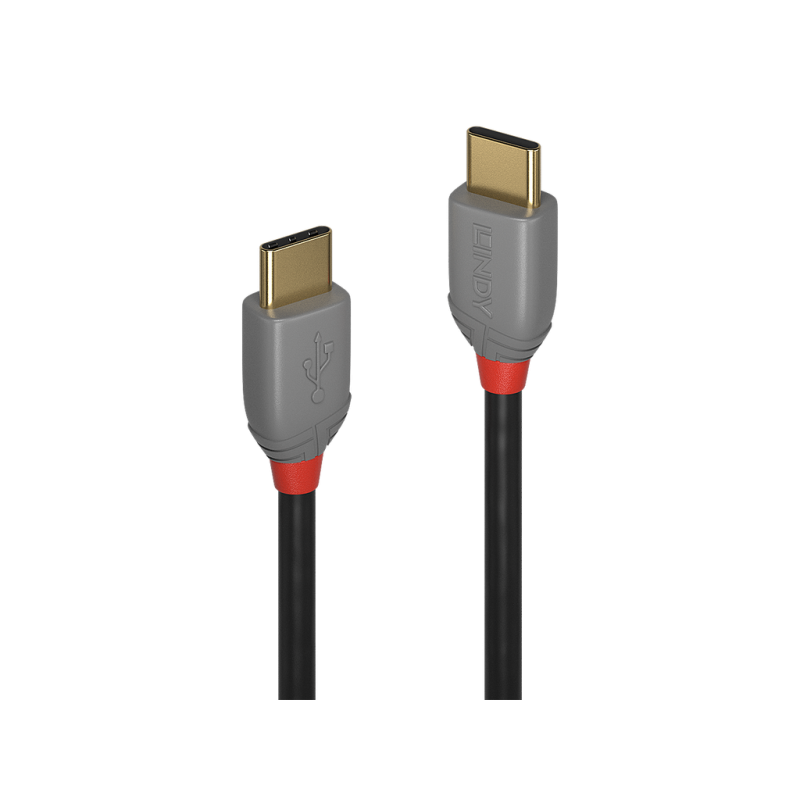

Connectors Connector A: USB 2.0 Type C Male Connector B: USB 2.0 Type C Male Housing Material: PVC Connector Plating: 24K Gold Plated Pin Construction: Phosphor Bronze Pin Plating: 24K Gold Plated Dimensions, (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in) Cable Construction Length: 3m (9.84ft) Standard: USB 2.0 Colour: Black Type: Round Jacket Diameter: 4.5mm (0.18in) Jacket Material: PVC Conductor Material: Tinned Copper Conductor Gauge: 24/28/32AWG Shielding: Copper Braid 85% Specifications Supported Bandwidth: 480Mbps Maximum Resolution: - Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db Minimum Bend Radius: 45mm (1.77in) Operating Temperature: -20°C - 80°C (-4°F - 176°F) Storage Temperature: -25°C - 85°C (-13°F - 185°F) Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH, UL Purchasing Information No. 36873 EAN: 4002888368735 This product is also available in other lengths 36870 - 0.5m (1.64ft) 36871 - 1m (3.28ft) 36872 - 2m (6.56ft) 36873 - 3m (9.84ft)
- Tipo de producto
- USB 2.0 Tipo C
- Garantía
- 2 años, excepto cableado AV 10 a 25 años.
- Longitud
- 3m
