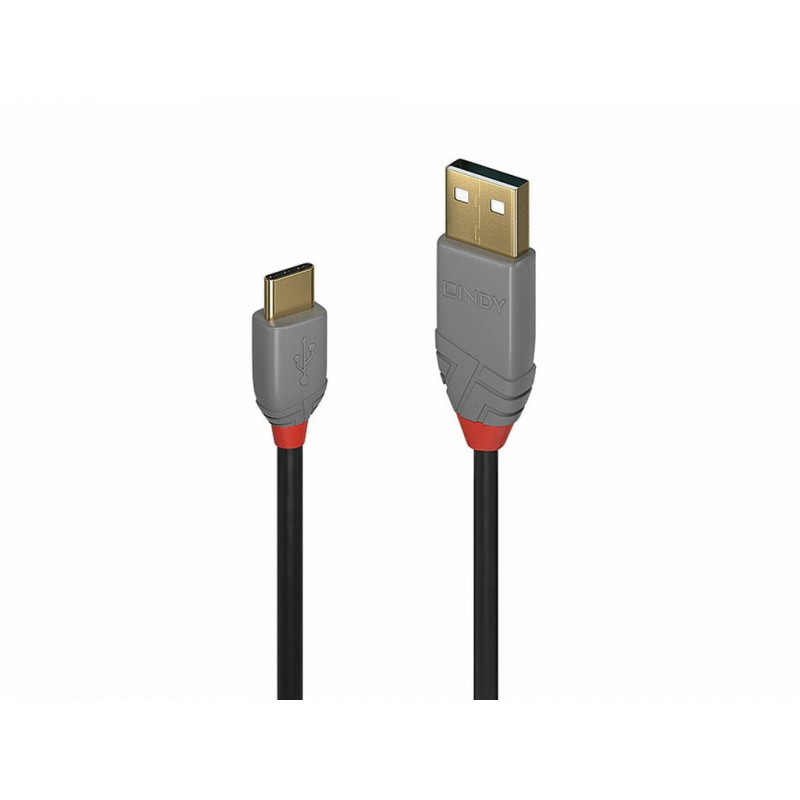

Connectors Connector A: USB 2.0 Type C Male Connector B: USB 2.0 Type A Male Housing Material: PVC Connector Plating: 24K Gold Plated Pin Construction: Phosphor Bronze Pin Plating: 24K Gold Plated Dimensions, USB Type C (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in) Dimensions, USB Type A (approx.) WxDxH: 15.5x35.1x7.8mm (0.61x1.38x0.31in) Cable Construction Length: 3m (9.84ft) Standard: USB 2.0 Colour: Black Type: Round Jacket Diameter: 3.5mm (0.14in) Jacket Material: PVC Conductor Material: Tinned Copper Conductor Gauge: 28AWG Shielding: Copper Braid 60% Specifications Supported Bandwidth: 480GMbps Maximum Resolution: - Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db Minimum Bend Radius: 35mm (1.38in) Operating Temperature: -20°C - 80°C (-4°F - 176°F) Storage Temperature: -25°C - 85°C (-13°F - 185°F) Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH, UL Purchasing Information No. 36888 EAN: 4002888368889 This product is also available in other lengths 36885 - 0.5m (1.64ft) 36886 - 1m (3.28ft) 36887 - 2m (6.56ft) 36888 - 3m (9.84ft)
- Tipo de producto
- USB 2.0 Tipo C a A
- Garantía
- 2 años, excepto cableado AV 10 a 25 años.
- Longitud
- 3m
