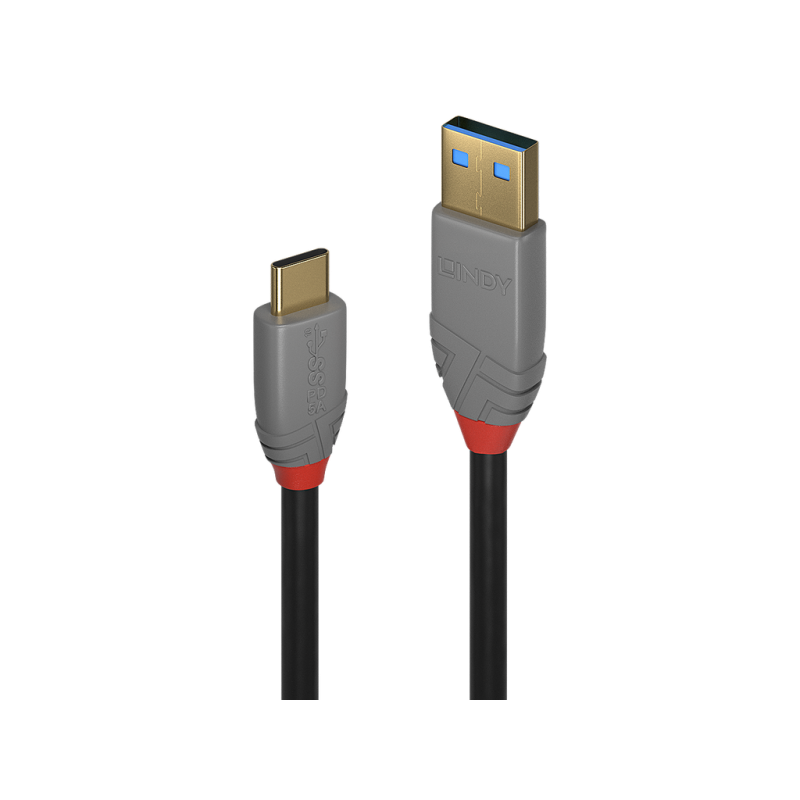

Connectors Connector A: USB 3.1 Type C Male Connector B: USB 3.1 Type A Male Housing Material: PVC Connector Plating: 24K Gold plated Pin Construction: Phosphor Bronze Pin Plating: 24K Gold plated Dimensions (approx.) WxDxH: A: 15.5x35.1x7.8mm (0.61x1.38x0.31in) C: 12.7x30.8x7.3mm (0.5x1.21x0.29in) Cable Construction Length: 0.5m (1.64ft) Standard: USB 3.1 Colour: Black Type: Round Jacket Diameter: 4.5mm (0.18in) Jacket Material: PVC Conductor Material: Tinned Copper Conductor Gauge: 24/30/32AWG Shielding: Tinned Copper Braid 85% Specifications Supported Bandwidth: 10Gbps Maximum Resolution: - Nominal Attenuation: 0.5Mhz – 15Ghz < 40db Minimum Band Radius: 45mm (1.77in) Operating Temperature: -20°C - 80°C (-4°F - 176°F) Storage Temperature: -25°C - 85°C (-13°F - 185°F) ATC Approved: - Miscellaneous Packaging Type: Polybag Warranty (Years): 2 Certificated: RoHS, REACH & UL Purchasing Information No.: 36910 EAN: 4002888369107 This product is also available in other lengths 36910 - 0.5m (1.64ft) 36911 - 1m (3.28ft) 36912 - 1.5m (4.92ft)
- Tipo de producto
- USB 3.1 Tipo C
- Garantía
- 2 años, excepto cableado AV 10 a 25 años.
- Longitud
- 0,5m
