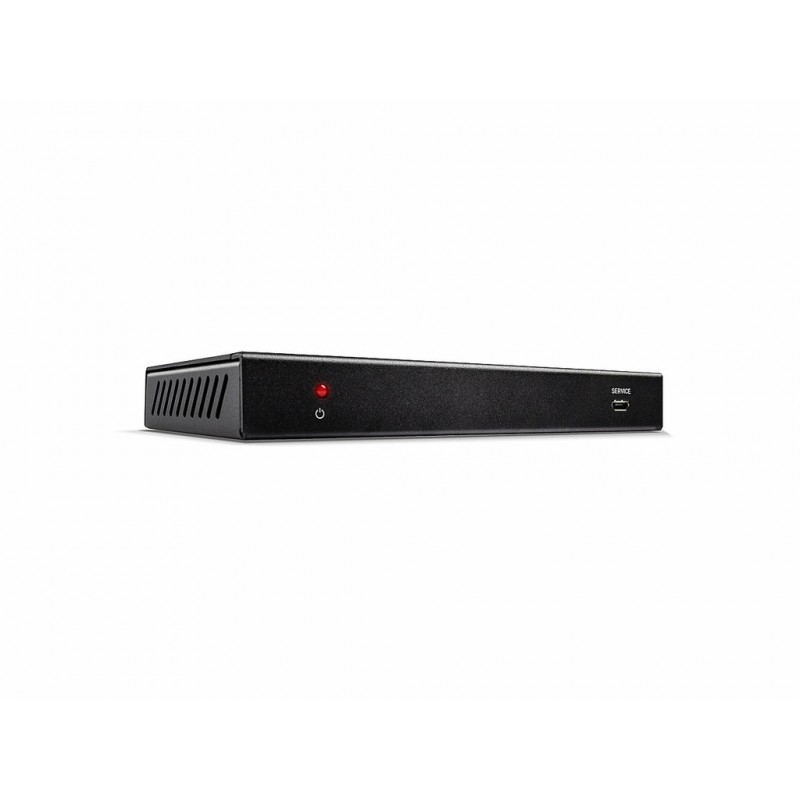

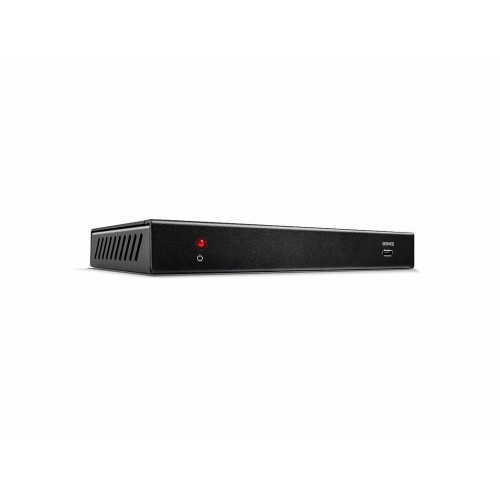

Extensor Lindy 100m Cat.6 HDMI 18G, IR & RS-232 HDBaseT con PoC, Transmitter 38206

Specifications AV Interface: HDMI Interface Standard: 2.0 Supported Bandwidth: 18Gbps Maximum Distance: 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit 100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit 150m (492.12ft) - 1280x720@60Hz Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Pass-through Supported Audio: HDMI Audio Pass-through Separate Audio Ports: 3.5mm (Female) IR Support: 20KHz - 60KHz CEC Support: Pass-through Serial Interface: RS-232 (Bi-directional) Transmission Protocol: HDBaseT Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: VS010-A0 Special Features: HDMI Loop Out Port PoC (Power over Cat.6) Connectors Transmitter Input: HDMI Type A (Female) IR (Female) Transmitter Output: HDMI Type A (Female) RJ-45 (Female) IR (Female) Receiver Input: - Receiver Output: - Bi-directional Ports: RS-232 (Female) Power : 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in) Housing Material: Metal Net Weight: 0.472kg (1.04lb) Operating Temperature : 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 220x115x75mm (8.66x4.53x2.95in) Gross Weight: 0.637kg (1.4lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS, REACH & California Proposition 65 Package Content HDBaseT HDMI Extender, Transmitter IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 2 x Mounting Ears 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38206 EAN: 4002888382069
